Restoration Index

Index Topic / Description
click for preview
of the topic
Abel Acme Web Page Area
(more photos of the topic)
Engine on original location
Abel Acme page #1
Abel Acme in the junk pile
Abel Acme page #1
Bringing the engine home
Abel Acme page #1
Bedplate & Cylinder make it into the shop
Abel Acme page #1
Cylinder mounted on the Horz. Boring Machine
Abel Acme page #1
The boring tool
Abel Acme page #1
Boring the Cylinder
Abel Acme page #2
The finished Bore
Abel Acme page #2
Facing the head mounting surface
Abel Acme page #2
Machining The valve chest mounting
Abel Acme page #2
Installation of Thread Inserts
for valve chest
Abel Acme page #3
Piston gets ready for metal spraying
Abel Acme page #3
Work starts on the intake valve
mixer assembly
Abel Acme page #3
The piston comes back metal sprayed
Abel Acme page #3
Intake valve assembly takes shape
Abel Acme page #4
Making rings to sweat onto the
valve chest assembly
Abel Acme page #4
Welding the main housing assembly
together
Abel Acme page #4
Turning of the main housing assembly
Abel Acme page #4
Threading the main housing assembly
Abel Acme page #5
Intake Valve Assemby & Main Housing
Assembly come together
Abel Acme page #5
Making the intake valve
Abel Acme page #5
Abel Acme page #6
Gas Valve Guide on Main Housing Assembly
Abel Acme page #6
Gas Valve and Seat construction
Abel Acme page #6
Dilling the Main Assembly
Mounting Holes
Abel Acme page #6
Milling the Main Housing
Assembly flange flat
Abel Acme page #6
Abel Acme page #7
Making the oil passage way for
the intake valve assembly
Abel Acme page #7

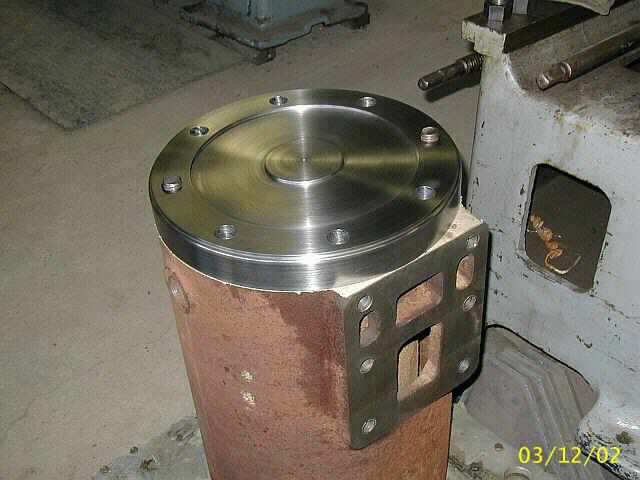

Drilling the (28) gas holes in the valve seat
Abel Acme page #7
Threading the air intake pipe
Abel Acme page #7
Turning a new head for the Abel Acme
Abel Acme page #7
The completed Head
Abel Acme page #8
Gas Valve Link & Spring
Abel Acme page #8



See
Page 1, Page 2, Page 3, Page 4, Page 5, Page 6, Page 7, Page 8, Index
for more of the 20 HP Abel Acme Restoration project.
